5. Design

5.1. Concepts

• Node Virtual machines running applications

• Cluster Group of Nodes executing the same applications and work

  together

• Counter Performance counter to be gathered. It can be a JMX counter on a JVM or an operating system script to be executed via SSH. It has got a Threshold field.

• Trigger Group of Counters associated to a Cluster. It has got a Timing field and a list of associated and ordered Actions. When any of the associated Counters reaches its threshold during the number of minutes defined in the Timing field it will execute the associated Actions
• Action Actions that can be executed against Nodes or Clusters. They can be for management tasks or to deploy new Nodes if needed. The following actions are available:

• DeployEc2Node Deploy a new virtual machine on EC2 and create a new Node
• DistributedScript Execute a Fabric script
• Email Send an email
• LocalScript Execute a local command in the target (i.e. shell script)
• RemoveEc2Node Stops a virtual machine on EC2 and removes its associated Node
• OSConfiguration Enforce an operating system configuration via Puppet

5.2. Main components

5.2.1. Django

https://www.djangoproject.com/

PyScaler is essentially a python web application based on the Django framework.

The core Django MVC framework consists of an object-relational mapper which mediates between data models (defined as Python classes) and a relational database (“Model”); a system for processing requests with a web templating system (“View”) and a regular-expression-based URL dispatcher (“Controller”).

Django applications are structured in project and apps. A Django project is a collection of settings for an instance of Django, including database configuration, Django-specific options and application-specific settings. A Django app is a bundle of Django code, including models and views, that lives together in a single Python package and represents a full Django application.

Django provides a Object-relational Mapping (ORM, O/RM, and O/R mapping) layer that provides an abstraction layer to the underlying database backend. Instead of defining database tables, indexes, relationships, etc..., you define Django models that represent the application data layout. Django ORM supports many different database backends as SQLite, MySql, etc...

5.2.2. Celery

http://www.celeryproject.org/

Celery is an asynchronous task queue/job queue based on distributed message passing. It is focused on real-time operation, but supports scheduling as well.

Some common Celery use cases:

1. Running something in the background. For example, to finish the web request as soon as possible, then update the users page incrementally.
2. Running something after the web request has finished.
3. Making sure something is done, by executing it asynchronously and using retries.
4. Scheduling periodic work.

As Django is a web application it just executes code when an url is called. As PyScaler needs to execute code on a scheduled basis (performance data collecting, etc...), it relies on Celery scheduling capabilities to automate the code execution. The Celery component that handles the periodics tasks is called Celerybeat.

PyScaler can invoke lengthy operations such as virtual machine deployments, etc... Being PyScaler a web application it is supposed to be responsive and it can not wait a for this lengthy operations to be finished. PyScaler overcome this situation by packaging these lengthy tasks into asynchronous celery task that are executed in the background.

5.2.3. SqLite

http://www.sqlite.org/

SqLite is a self-contained, serverless, zero-configuration, transactional SQL database engine.

It is used on PyScaler as the configuration storage. As PyScaler almost configuration storage is minimal and almost not varies, using a simple database as SqLite eases its management.

For big deployments or high availability reasons it could be easily migrated using Django’s ORM layer to another RDMBS as MySql, Oracle, etc...

5.2.4. Memcached

Memcached is a general-purpose distributed memory caching system. It is often used to speed up dynamic database-driven websites by caching data and objects in RAM to reduce the number of times an external data source (such as a database or API) must be read.

In PyScaler it is used to store the gathered performance data. As it is memory based all queries are really fast and it is easily scalable.

5.2.5. RabbitMQ

RabbitMQ is open source message broker software (i.e., message-oriented middleware) that implements the Advanced Message Queuing Protocol (AMQP) standard.

It is used by Celery to manage the tasks.

5.2.6. Gunicorn

The Gunicorn “Green Unicorn” is a Python Web Server Gateway Interface HTTP Server for Unix.

Although Django provides a basic web server for development it is not suitable for production because it is not optimized to handle all types of requests, such as static files, or high loads. Gunicorn is a pre-fork worker model, ported from Ruby’s Unicorn project. The Gunicorn server is broadly compatible with a number of web application frameworks, simply implemented, light on server resources and fairly fast.

5.2.7. Nginx

nginx (pronounced “engine x”) is an open source web server and a reverse proxy server for HTTP, SMTP, POP3, and IMAP protocols, with a strong focus on high concurrency, performance and low memory usage.

Nginx is used to serve the required static files and to proxy dynamic request to Gunicorn, where Django is executed.

5.2.8. Puppet

Puppet is IT automation software that helps system administrators manage infrastructure throughout its lifecycle, from provisioning and configuration to patch management and compliance. Using Puppet, you can easily automate repetitive tasks, quickly deploy critical applications, and proactively manage change, scaling from 10s of servers to 1000s, on-premise or in the cloud.

It is used by PyScaler to provision Nodes.

5.2.9. Amazon Web Services

Amazon Web Services (abbreviated AWS) is a collection of remote computing services (also called web services) that together make up a cloud computing platform. They are Amazon.com cloud Infraestructure As A Service offering.

PyScaler makes direct use of EC2 (Elastic Compute Cloud) and ELB (Elastic Load Balancer) although it can make use of additional services if needed.

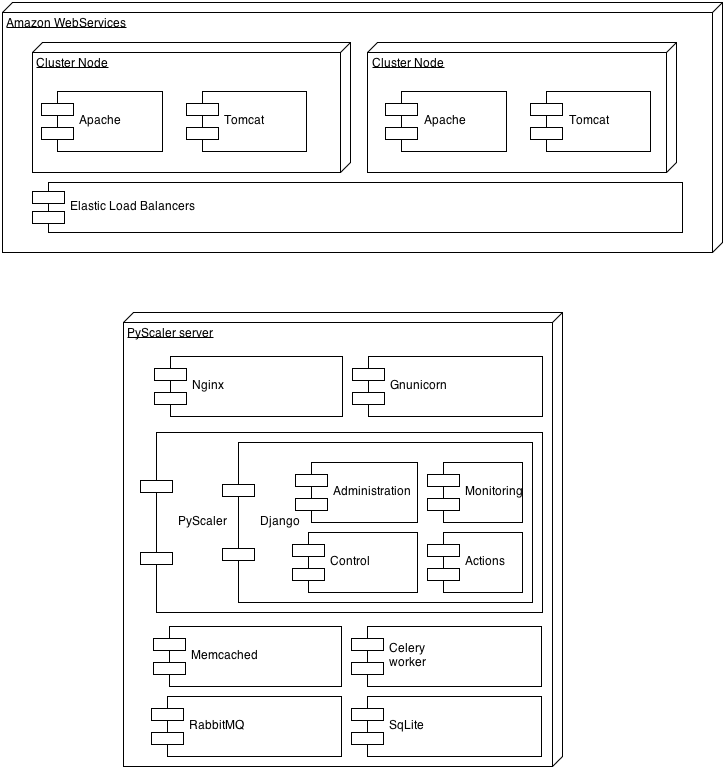

5.3. Project layout

As we have stated before a Django based application has got a project and different apps. The following section describes how the the project is organized.

5.3.1. PyScaler project

It contains all the settings for an instance of Django. This includes database configuration, Django-specific options and application-specific settings.

5.3.2. Django apps

5.3.2.1. apps.monitoring app

This app is responsible of connecting to remote servers and collect performance data. It is basically a container of different sub apps for each different possible performance data sources. The currently implemented performance data sources are SSH and JMX

This app outputs the collected performance data the collected performance counters to filesystem log and to the shared cache (memcached)

It provides the following services:

• Contains JMX and SSH apps
• Provides access web page to sub apps

5.3.2.2. apps.monitoring.jmx app

This app is used to manage performance data gathered from JVMs via JMX.

It provides the following services:

• JVM counter gathering tasks
• JVM counter graph pages
• JVM counter data api to feed dynamic graph pages

5.3.2.2.1. Relevant libraries

• Jpype http://jpype.sourceforge.net/

  This library is used to execute java classes from python scripts. It is used in the project to execute JMX related code to collect remote JVMs performance data.

5.3.2.3. apps.monitoring.ssh app

This app is used to connect via ssh to hosts and execute a script. The output of this script must be an integer value that represents a performance counter. This app is defined in the django package apps.monitoring.ssh

It provides the following services:

• JVM counter gathering tasks
• JVM counter graph pages
• JVM counter data api to feed dynamic graph pages

5.3.2.3.1. Relevant libraries

• Paramiko https://github.com/paramiko/paramiko

  This library is used to execute scripts in remote hosts via SSH from python.

5.3.2.4. apps.control app

This module contains the business logic of the application. It has the following roles:

• Manages Cluster and Nodes objects. Can add and remove Nodes definitions and handles the Cluster integration
• Triggers the Counters defined in the Clusters’ Triggers
• Triggers groups of actions, either manually or due a Trigger threshold

It provides the following services:

• Launch all performance data gathering tasks
• Analyze performance data and trigger actions if needed
• Serve frontend webpages to execute actions such as scripts and trigger execution or node management

5.3.2.5. apps.actions app

This module contains the different actions that can be triggered from PyScaler.

5.3.2.5.1. Relevant libraries

• Boto https://github.com/boto/boto

  A Python package that provides interfaces to Amazon Web Services. It is used to deploy new virtual machines on EC2

• Fabric http://www.fabfile.org

  A Python (2.5 or higher) library and command-line tool for streamlining the use of SSH for application deployment or systems administration tasks.

5.4. Data Model

There are two types of data managed by PyScaler.

5.5. Performance data

The performance data is stored in Memcached. Data is stored in a dictionary data structure with the following format

• Key / Value format
  • jmx_jmxcounter.<nodeId>.<jvmid>.<counterid>.yymmhhddhhmmss : <Value>
  • ssh_sshcounter.<nodeId>.<counterid>.yymmhhddhhmmss : <Value>

For example:

• jmx_jmxcounter.3.5.201306182046:600
• ssh_sshcounter.2.4.201306182046:300

Each monitored counter has got an additional field to store the number of times that the threshold has been reached. This is used to trigger actions if the threshold has been hit a number of times. Once the threshold is not reached then the counter is reset.

• Key / Value format
  • jmx_jmxcounter.<nodeId>.<jvmid>.<counterid> : <Value>
  • ssh_sshcounter.<nodeId>.<counterid> : <Value>

For example:

• jmx_jmxcounter.3.5:5
• ssh_sshcounter.2.4:10

5.6. Configuration data

Django provides an Object-relational_mapping layer that avoids the need of designing the database layout.

With django you define your data structure by using model classes. A model is the single, definitive source of data about your data. It contains the essential fields and behaviors of the data you’re storing. Generally, each model maps to a single database table. Each module has got different models that are interconnected between them.

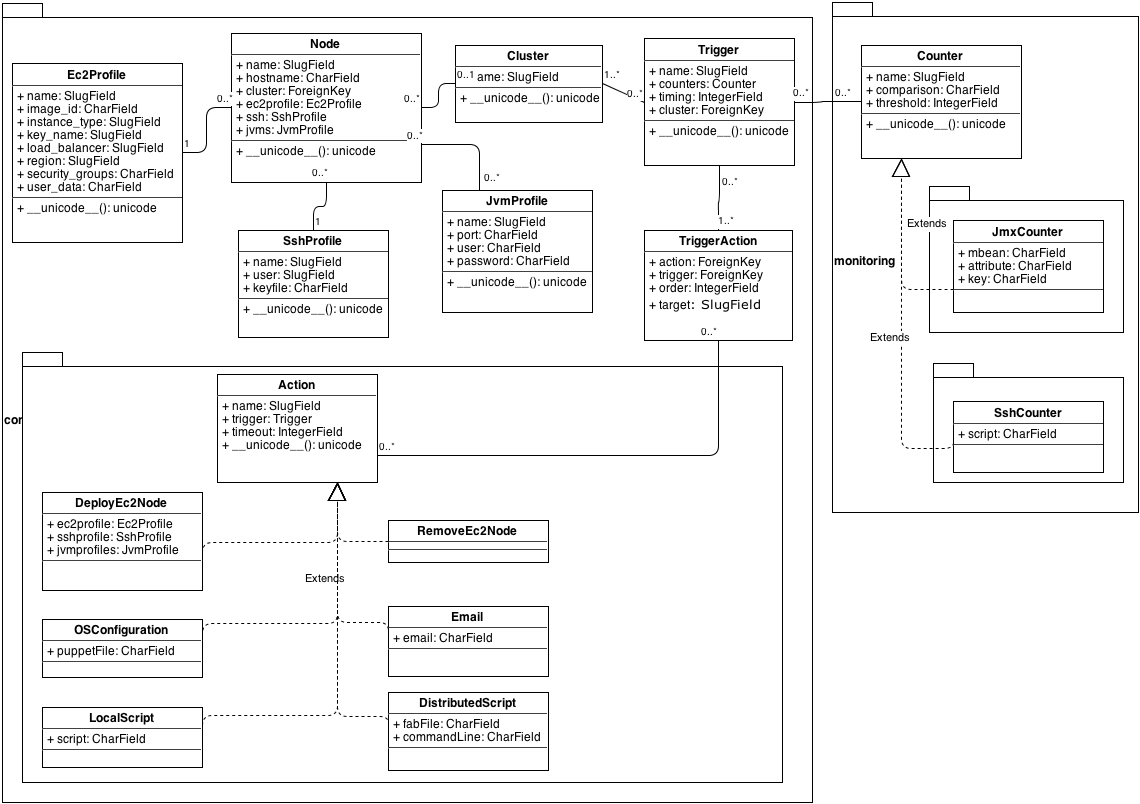

5.7. Configuration data models

The following models contains the configuration information of PyScaler
